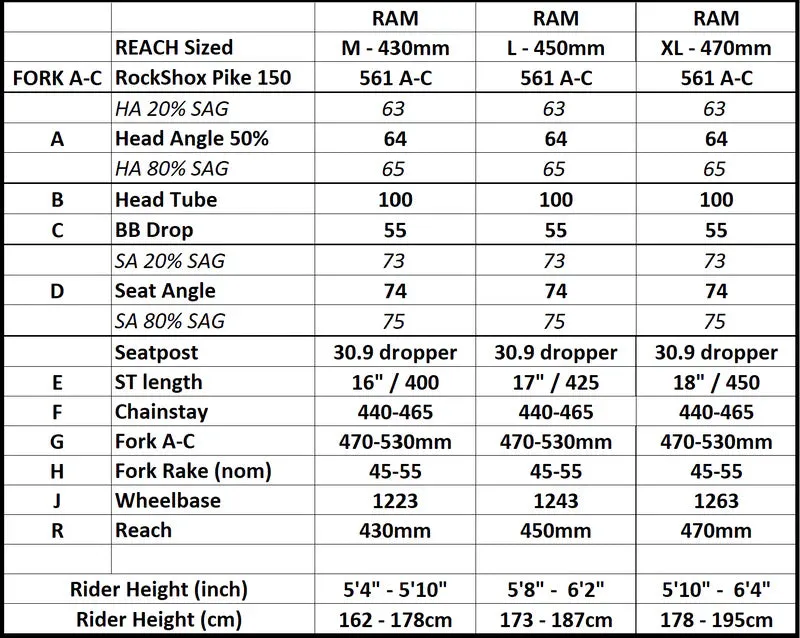

The Ram is a Titanium Frame similar to the Swan, however it is designed for bigger 150mm travel forks. This frame has the same versatility, fitting 2 tyre sizes 27.5 and 29x2.8". This frame has Trail geometry with 64deg head angle, long low top tube, dropper seatpost (geometry) and Rocker Split Dropouts for belt drive.

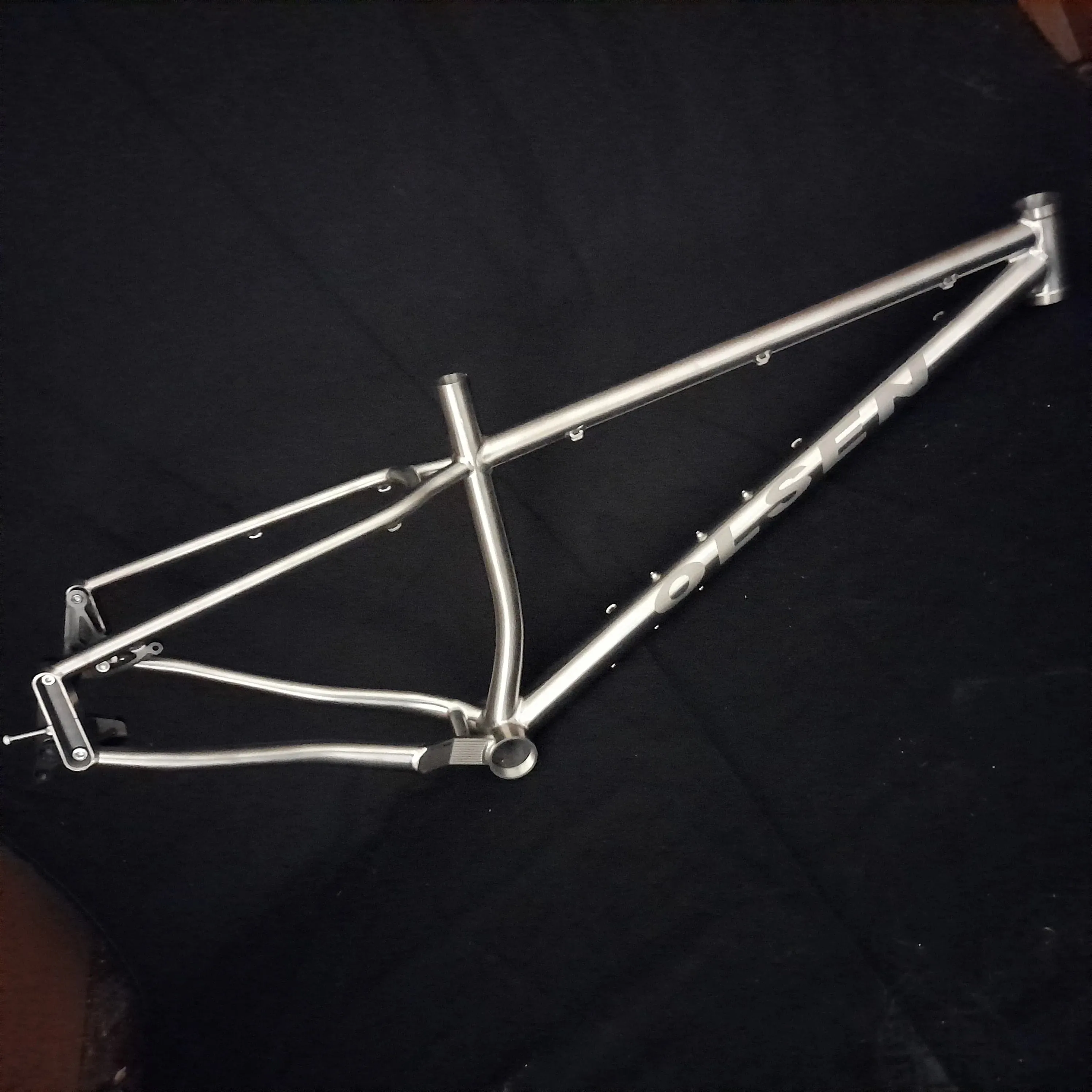

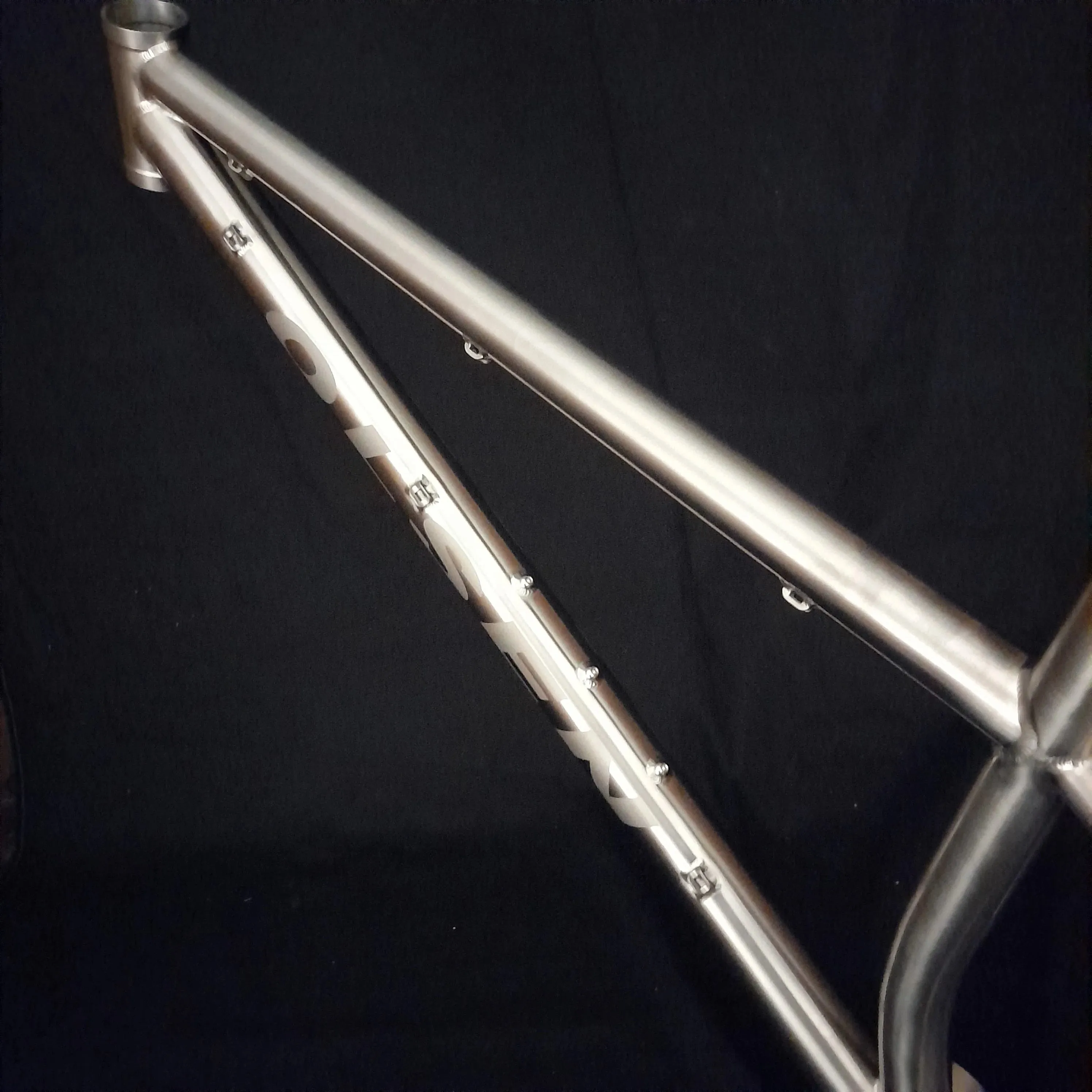

The Ram 148mm Boost- Titanium MTB Enduro Frame
The Ram is similar to the Swan, however it is designed for bigger 150mm travel forks. This frame has the same versatility, fitting 2 tyre sizes 27.5 and 29x2.8". This frame has Trail geometry with 66deg head angle, long low top tube, dropper seatpost (geometry) and Rocker Split Dropouts for belt drive.

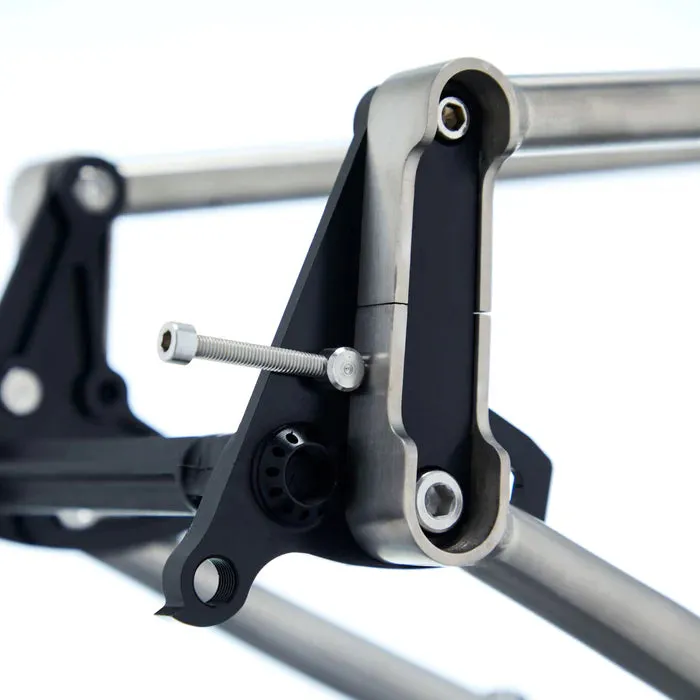

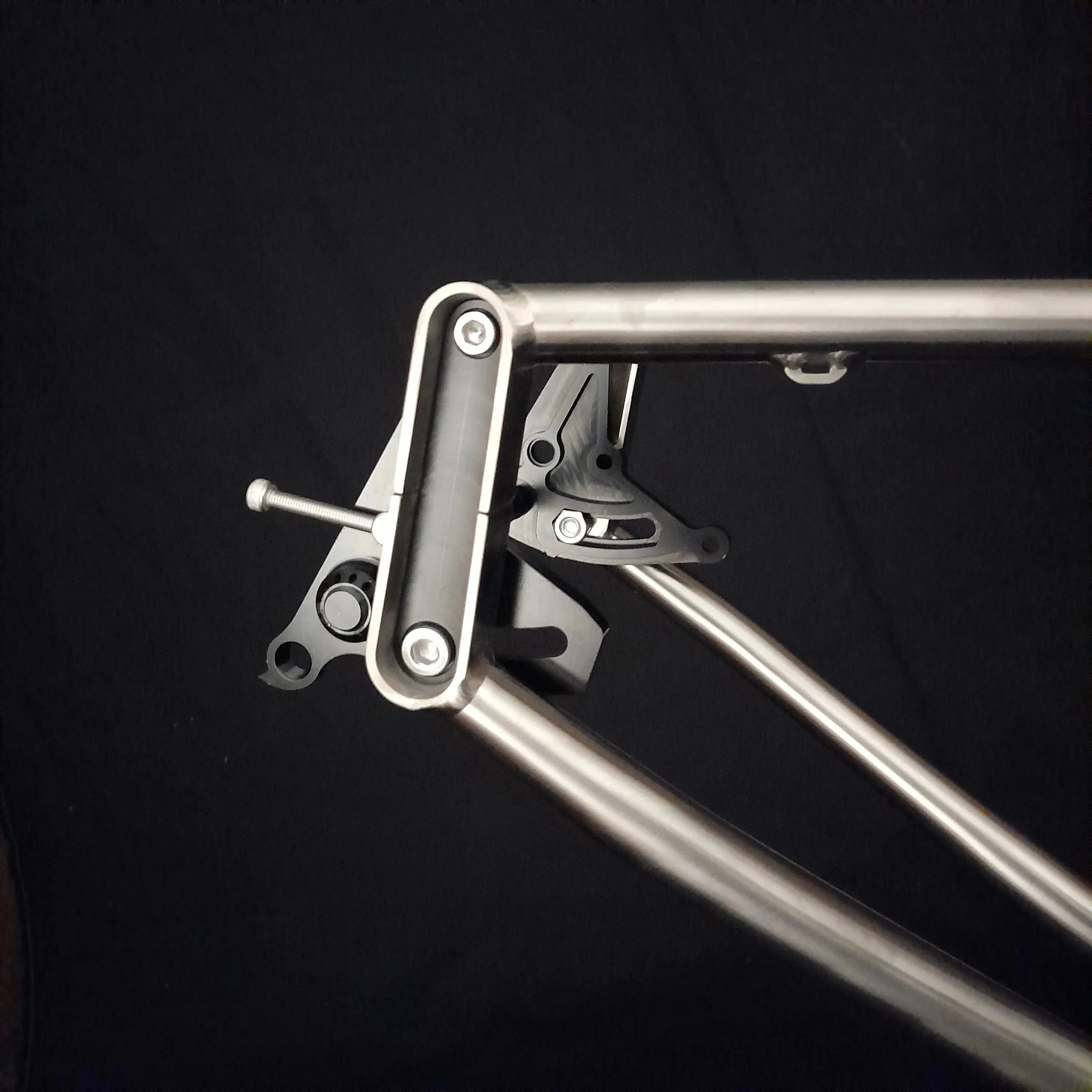

Frame with RocknRollout Dropouts
- Wheel sizes: 29x2.8" or 27.5x3.0" tyres

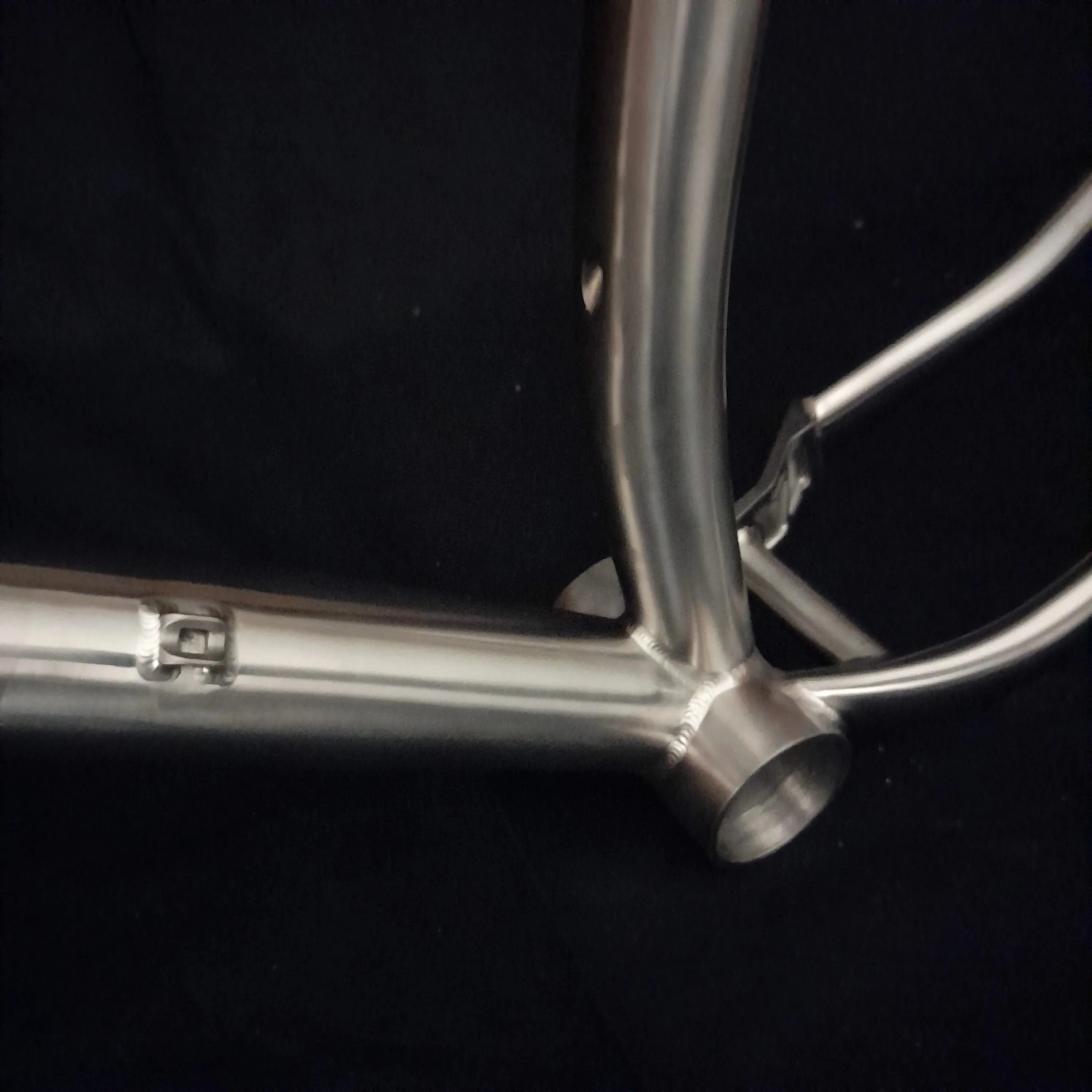

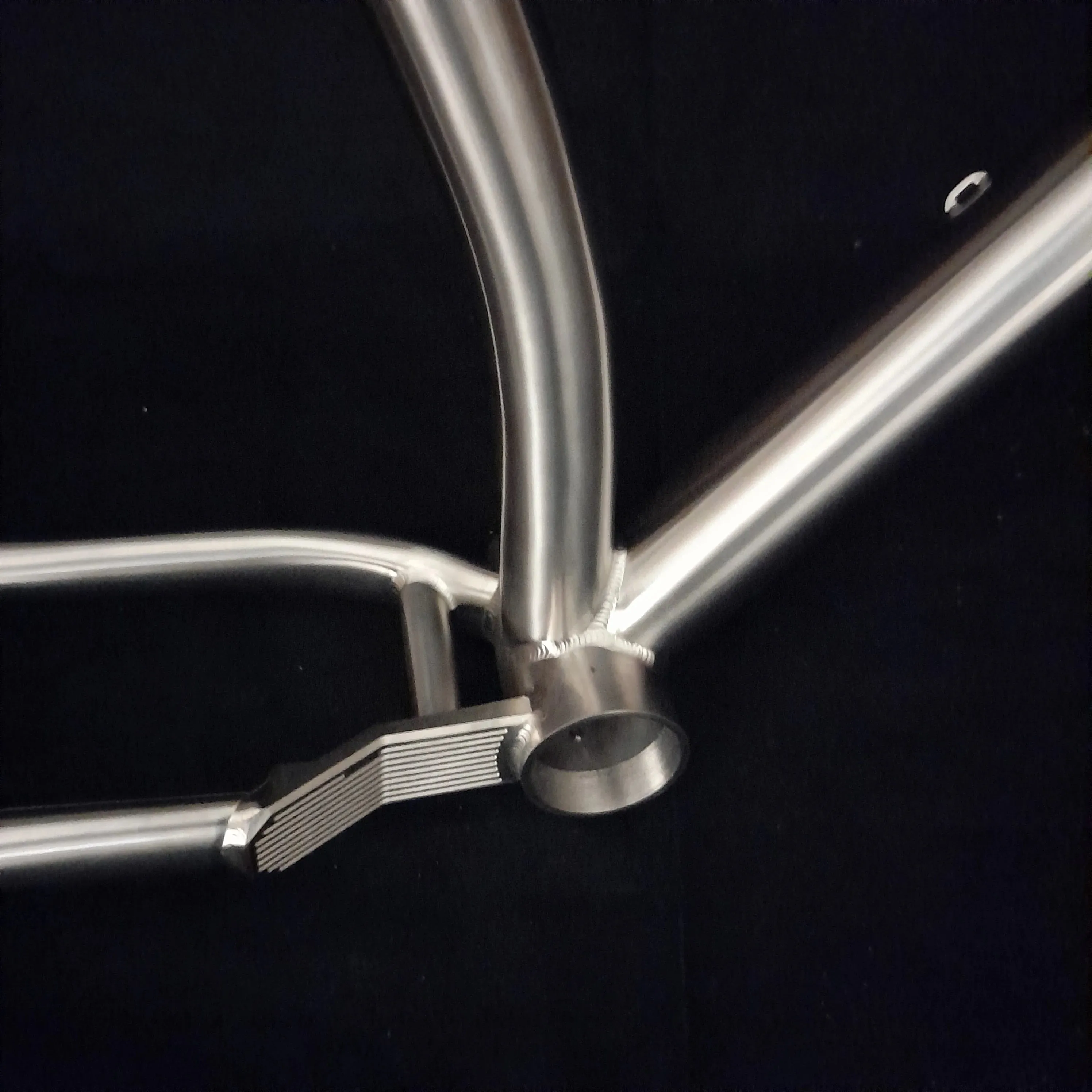

- Bottom Bracket = T47x92mm (Internal threaded cups)

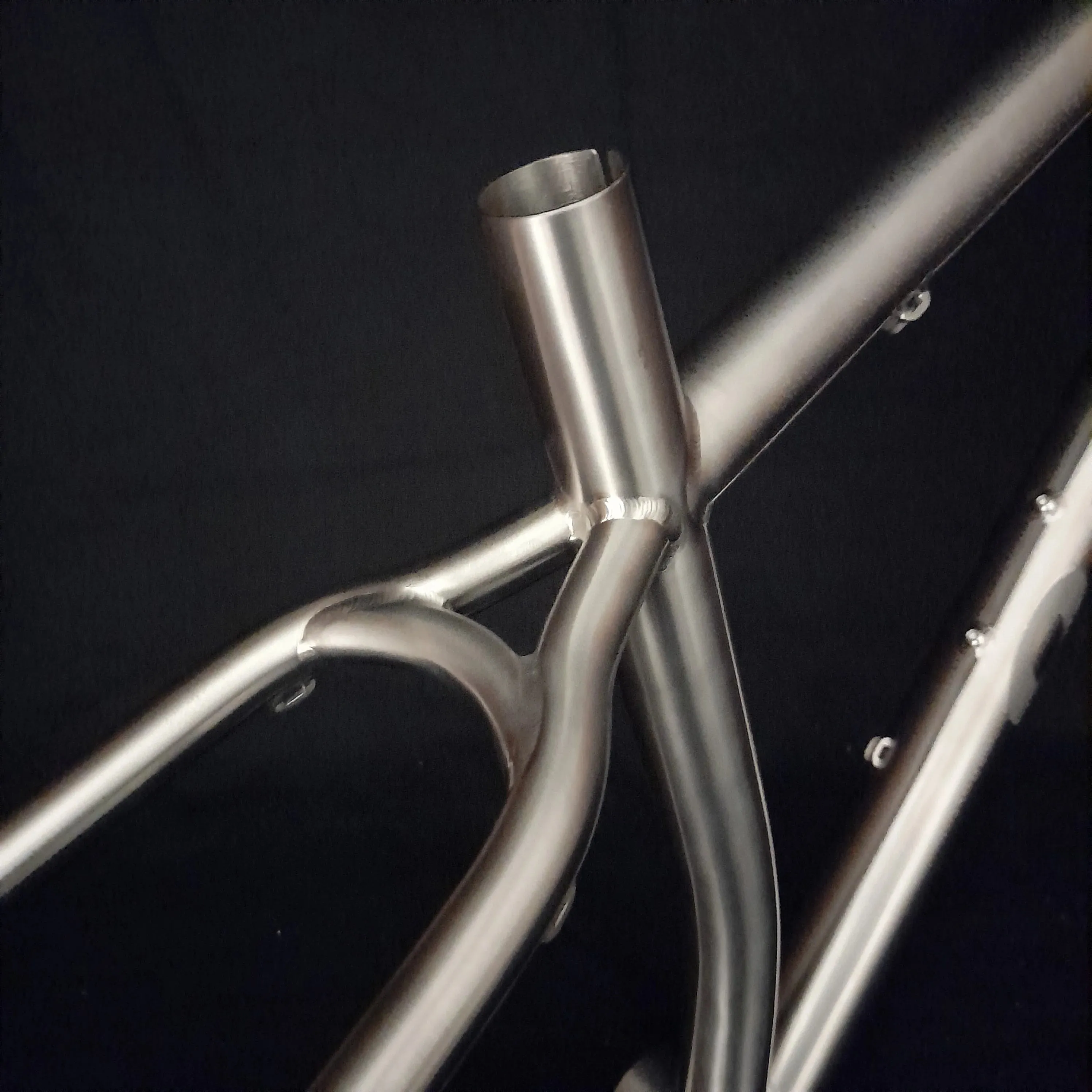

- Seatpost: 30.9mm
